YUFENGREC

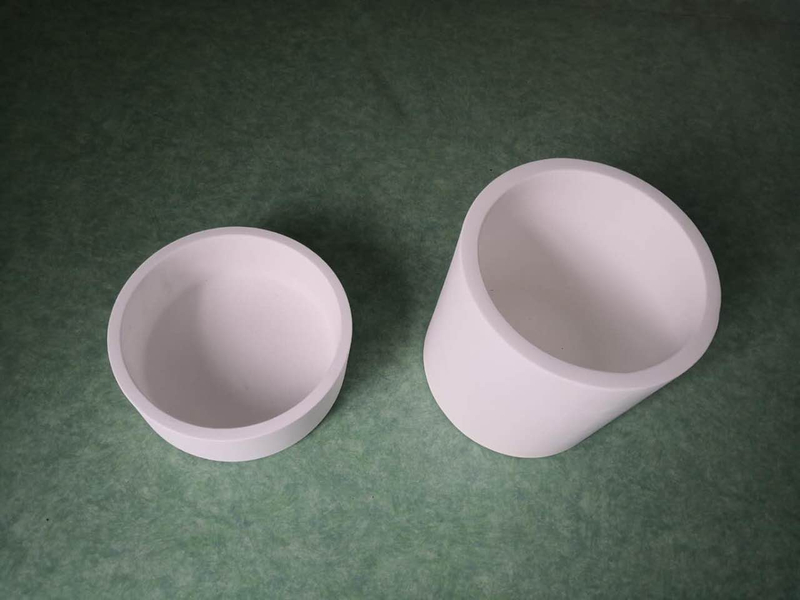

YUFENGREC Fused Silica Ceramic Crucible are made of high pure fused silica raw mateiral , as it 's characteristics of fine structure, low thermal conductivity, small thermal expansion coefficient, high dimensional accuracy of finished products, no deformation at high temperature, good thermal shock resistance, good electrical properties and good chemical corrosion resistance. Therefore, it is in the glass deep processing industry and metallurgical industry, electronics industry, chemical industry, aerospace and other fields have been widely used.
Technical Data
Item | Unit | Index |
SiO2: | % | ≥99.8 |
Al2O3 | % | ≤2000ppm |
Fe2O3 | % | ≤ 45ppm |
CuO | % | ≤ 45ppm |
TiO2 | % | ≤ 45ppm |
Cr2O3 | % | ≤ 45ppm |
NiO | % | ≤ 45ppm |
MgO | % | ≤ 40ppm |
Na2O | % | ≤ 40ppm |
K2O | % | ≤ 40ppm |
Density | g/cm3 | 1.95 - 2.00 |
Apparent Porosity | % | 10-11 |
Compressive Strength | MPa | ≥60 |
Modulus of Rupture | MPa | ≥30 |
Crystallinity | % | Cristobalite ＜1％ |
Thermal Expansion Rate 20-1000℃ | x 10-6/℃ | ＜0.6 |
Thermal Conductivity 20℃ | W/M.K | 0.64 |
500℃ | W/M.K | 0.81 |
1090℃ | W/M.K | 0.88 |
Roughness Ra | um | ≤1.6 |
Diameter Tolerance | mm | +/- 0.03 |
T.I.R. | mm | ≤0.13 |
Material Characteristics | High Density , Strength , No bubbles | |
Effect | Long working Life , Good Stability |
The data are average results of test under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation.
