YUFENGWOOL®

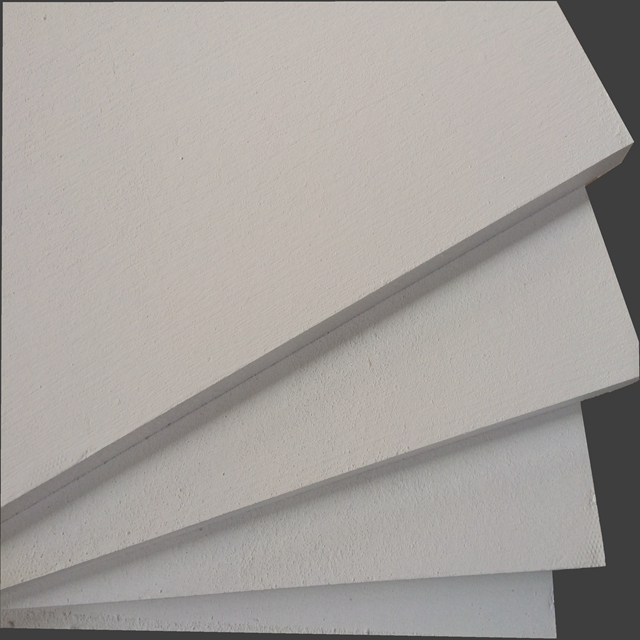

YUFENG WOOL® Calcium Silicate Board is an asbestos-free thermal insulation product that can withstand continuous operating temperature from 650℃ up to 1000℃.
It is light weight, low thermal conductivity, high strength, easy to install, reliable and durable.
There are 2 grades available namely 650℃ &1000℃ which are commonly used as furnace backup insulation in steel, petrochemical, ceramic, cement & glass industry or fire protection in building construction.
It not only provides energy saving, also increases production efficiency. And in the housing construction Calcium Silicate Board is also used as the ceiling, fireproof and heat insulation materials of wall and sound absorption materials of decoration.
Key Features
*Good durability, can withstand the continuous heat load under high temperature, long-term use without powder phenomenon
*Low thermal conductivity
*Lightweight, High Strength.
*Construction of strong applicability, which can be cut by ordinary woodworking tools
*Safety, Does not contain asbestos, sulfur, chlorine and other toxic substances.
Typical Applications
*Metallurgical Industry
Heating Furnace
Soaking Pit Furnace
Annealing Furnace
Gas duct ,Hot Air Duct …
*Petrochemical Industry
Cracking furnace
*Cement Industry
Preheater
Three air ducts
Kiln Hood
Cooler
*Glass Industry
*Power Plant
etc ……
TECHNICAL DATA
Unit | Calcium Silicate Board 1100 | |
Max Working Temperature | ℃ | 1050 |
Color | White | |
Density | Kg/M3 | 220－270 |
Compressive Strength | Mpa | 0.5 |
Rupture Strength | Mpa | 0.35 |
Linear Shrinkage after heating 1000℃*3h | % | 1.5 |
Thermal Conductivity at mean Temp. 200 ℃ | W/m.k | 0.067 |
The data are average results of test under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation.
Standard Size
Length | Width | Thickness |
610 | 303,300,150 | 25-140 |
600 | 300 | 25-140 |
400 | 250 | 25-140 |
1000 | 500 | 25-140 |
1200 | 600 | 25-140 |
* Special Size can be customized
