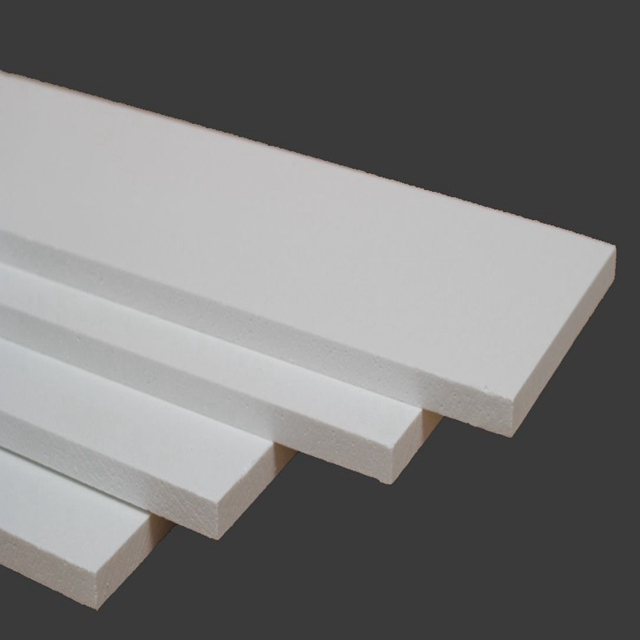

YUFENG WOOL ® SOLUBLE FIBER BOARD
YUFENGWOOL®
68061010
Yufeng Wool® Soluble Ceramic Fiber Board are made from soluble fiber and a small amount of organic binder .meet European regulatory requirements (Directive 97/69/EC)
Due to high fiber content , The Soluble Fiber Board are strong ,lightweight and good thermal shock resistant .
Key Features
* Low thermal conductivity.
*Waterproof
*Precise geometry and close tolerances .
*Thermal shock resistance.
*Homogeneous structure ,easy for matching *Non-brittle
*High Fiber content
*Lightweight ,low heat storage
*Easy to install
Typical Applications
*Refractory lining for industrial furnaces in wall, roofs ,doors ,stacks etc .
*Combustion chamber liners ,boilers and heaters
*Back-up insulation for brick and monolithic refractories
*Transfer of molten aluminum and other non-ferrous metals
*Expansion joints boards
*Barrier against flame or heat
*Hot face layer for high velocity or abrasive furnace atmosphere
Standard Size
Length/Width: 900 x 600 mm ,1000 x 500 mm, 1200 x 1000 mm
Thickness : 10-50mm , over 50mm is obtained by bonding resistance two thinner sheets .
Special size can be customized
Standard Packing
CARTONS , PALLET
TECHNICAL DATA
Unit | YUFENG WOOL ® SOLUBLE CERAMIC FIBER BOARD | |||
Soluble | mg/l | ≥ 200 | ||
Classification Temperature | ℃ | 1260 | ||
Max Working Temperature | ℃ | 1100 | ||
Color | White | |||
Moisture Content | % | ≤1 | ||
Organic Content | % | ≤6 | ||
Theoretical Density | Kg/M3 | 280 +/- 15 | ||
Compressive Strength | Mpa | ≥ 0.1 | ||
Thermal Conductivity at mean Temp. 500 ℃ | W/m.k | ≤0.153 | ||
Shrinkage on Heating | % | 1000 ℃ x 24 h ≤ -4 | ||
The data are average results of test under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation.
