YUFENGREC®

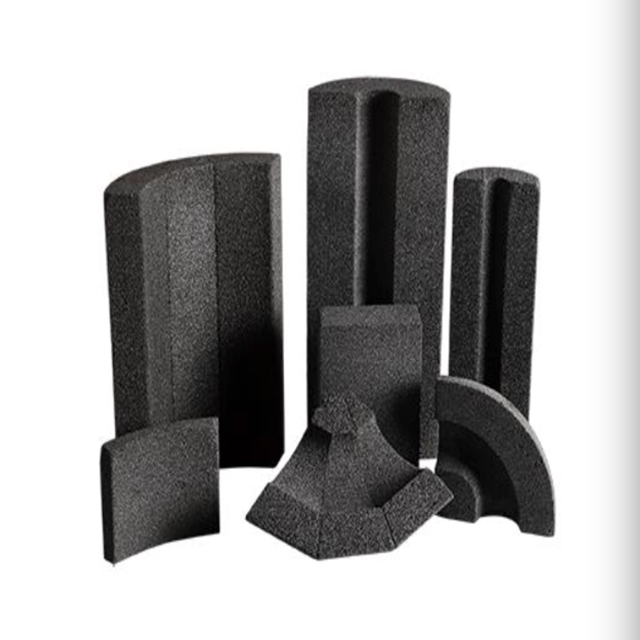

YUFENGREC® Foam Glass Pipe Section is an alumina-silicate ,which is cutting by foam glass slab ,The foam glass pipe section with an exfoliated glass structure .The silicate composition provides excellent chemical protection ,while the cellular structure minimum density and thermal conductivity
Key Features
* Wide working temperature range from low temperature to high temperature
* Low thermal conductivity and high compressive strength
Water proof ,humid resistant ,air tightness
Low Thermal expansion ,good dimension stability
* Not combustible ,aging resistant ,corrosion resistant
Non-toxic ,healthy and environmental friendly
Bacteria resistant
Surface Preparation
For all pre-existing surfaces of pipe ,the surface should be dust-free and oil-free and dry and the ambient temperature should be above the dew point of air .
It is usually recommended that foam glass pipe section is applied to the pipe prior to installation to provide a sealant to the inner layer of the foam glass section
Applications
*Once the pipe has been prepared ,the foam glass pipe section can be installed using sealant . The joint between foam glass pipe section should be fill with sealant ,to make sure the installation layers is sealed well.
Dimensions
Normal Foam Glass Slab size
Length : 600 mm ,
Width : 470 mm ,
Thickness : <200 mm
* Foam Glass Pipe Section
Size : ≤o.5 inches
Thickness : ≥20mm
Length : ≤ 600 mm
Standard Packing
YUFENGREC foam glass pipe section can be provided by cardboard box form . Volume and numbers are specific to foam glass pipe section type
Storage
Store in a cool ,dry and frost-free place .Normal storage conditions is up to 25℃ should provide indefinite shelf life . The foam glass pipe section is extremely friable and should not have any weight stacked on tope of it ,Don’t double stack pallets or any other materials on tope of it .
Take extreme care during handing
